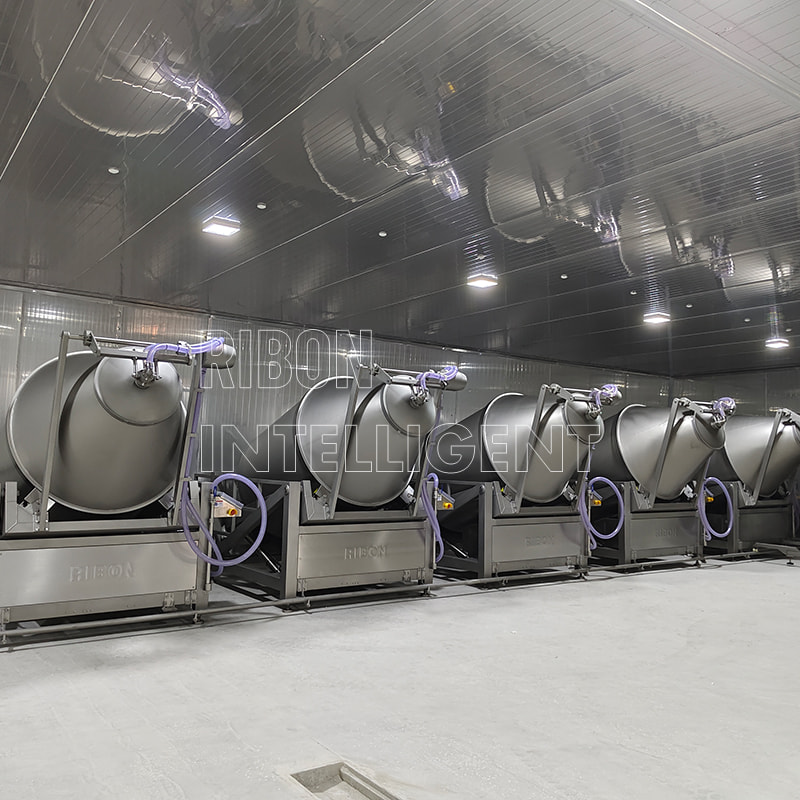

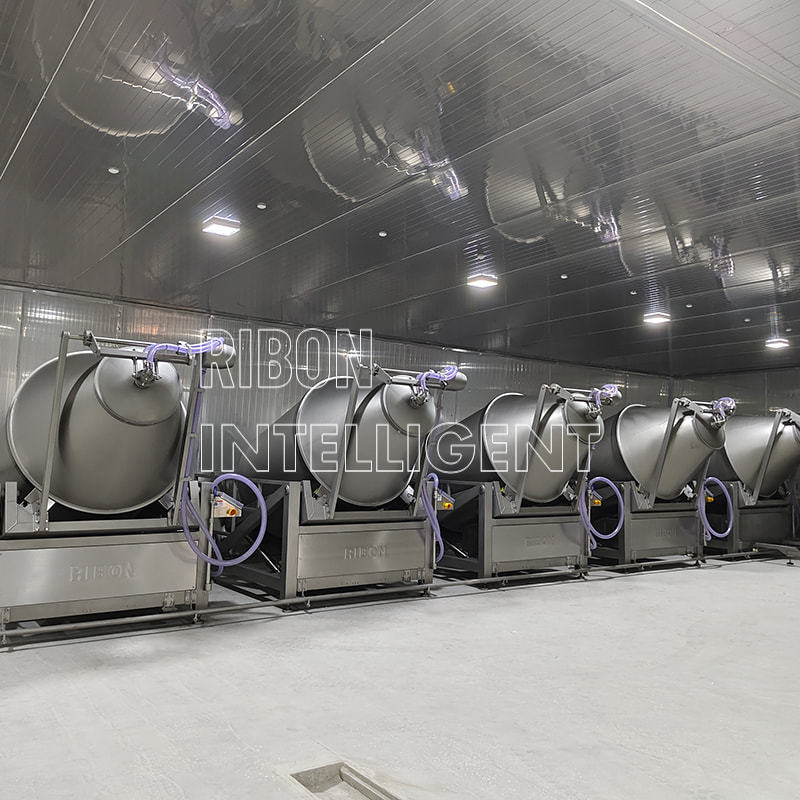

Refrigerated vacuum tumbler

Characteristics:

The RIBON refrigerated tumbler/cooling tumbler operates through an integrated independent refrigeration system working in conjunction with a jacket surrounding the outer wall of the drum. Its core purpose is to precisely control the temperature during prolonged marinating and tumbling of meat products, thereby addressing two critical pain points: ensuring food safety and enhancing final product quality.



Core advantages of refrigeration:

Inhibits bacterial growth, ensuring food safety and extending product shelf life.

Enhances product quality and texture by ensuring effective protein extraction, improving water retention and yield.

Addresses production challenges by reducing environmental requirements, ensuring a consistently stable meat temperature throughout the process, unaffected by external ambient conditions.



Core characteristics of the vacuum tumbler:

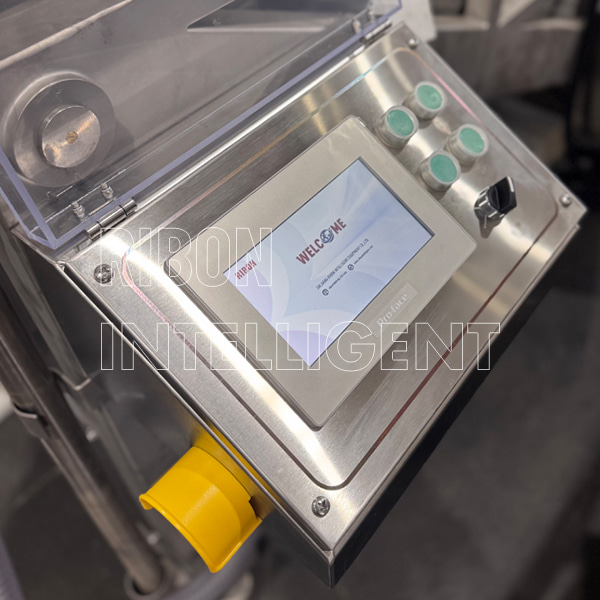

◇PLC and touch screen controlled.

◇Continuous vacuum or breathing rotation.

◇Speed can be adjusted from 2 to 12 rpm by the frequency inverter.

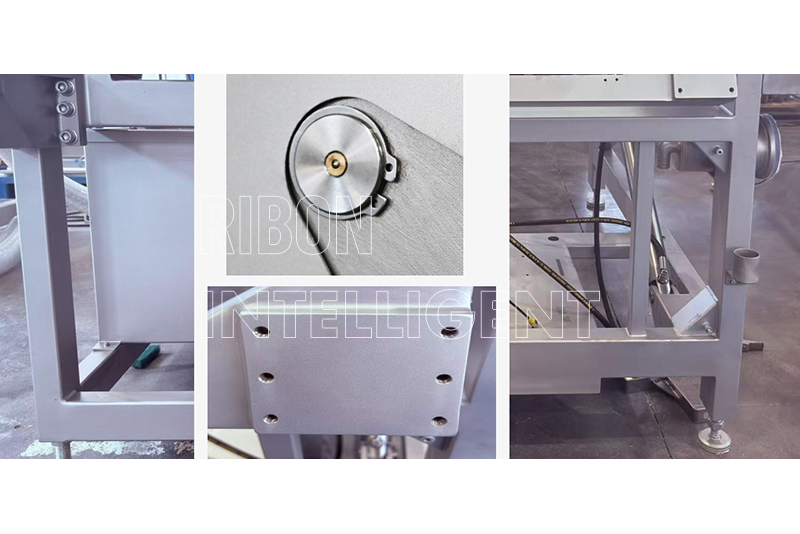

◇With the tiltable frame and hydraulic system.

◇Different loading options for different products.

◇Optional Arc-shaped and blade -shaped carries for different products.

◇Adopt water-sealed vacuum pump.

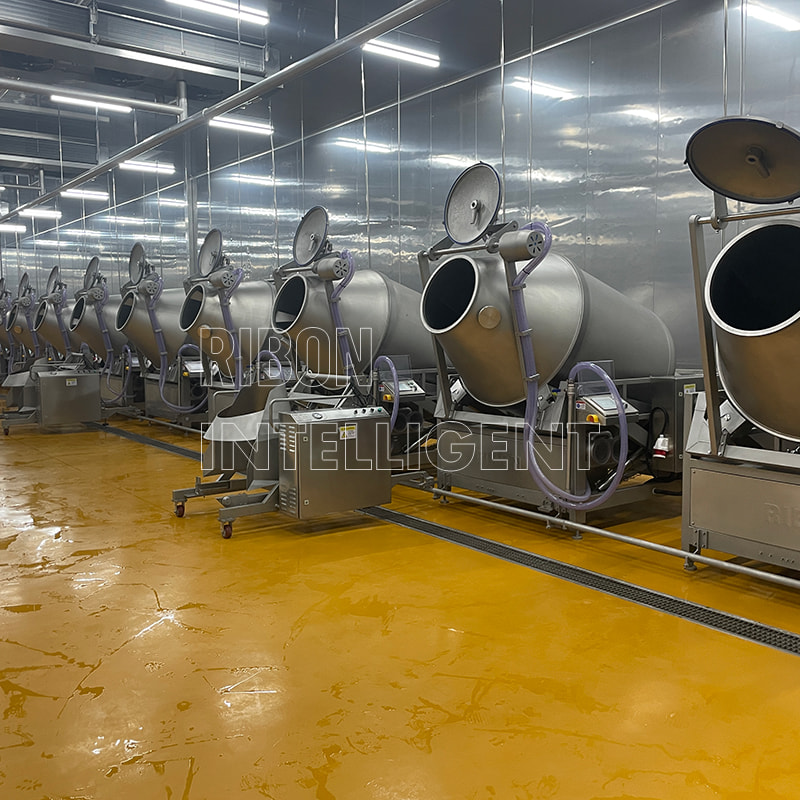

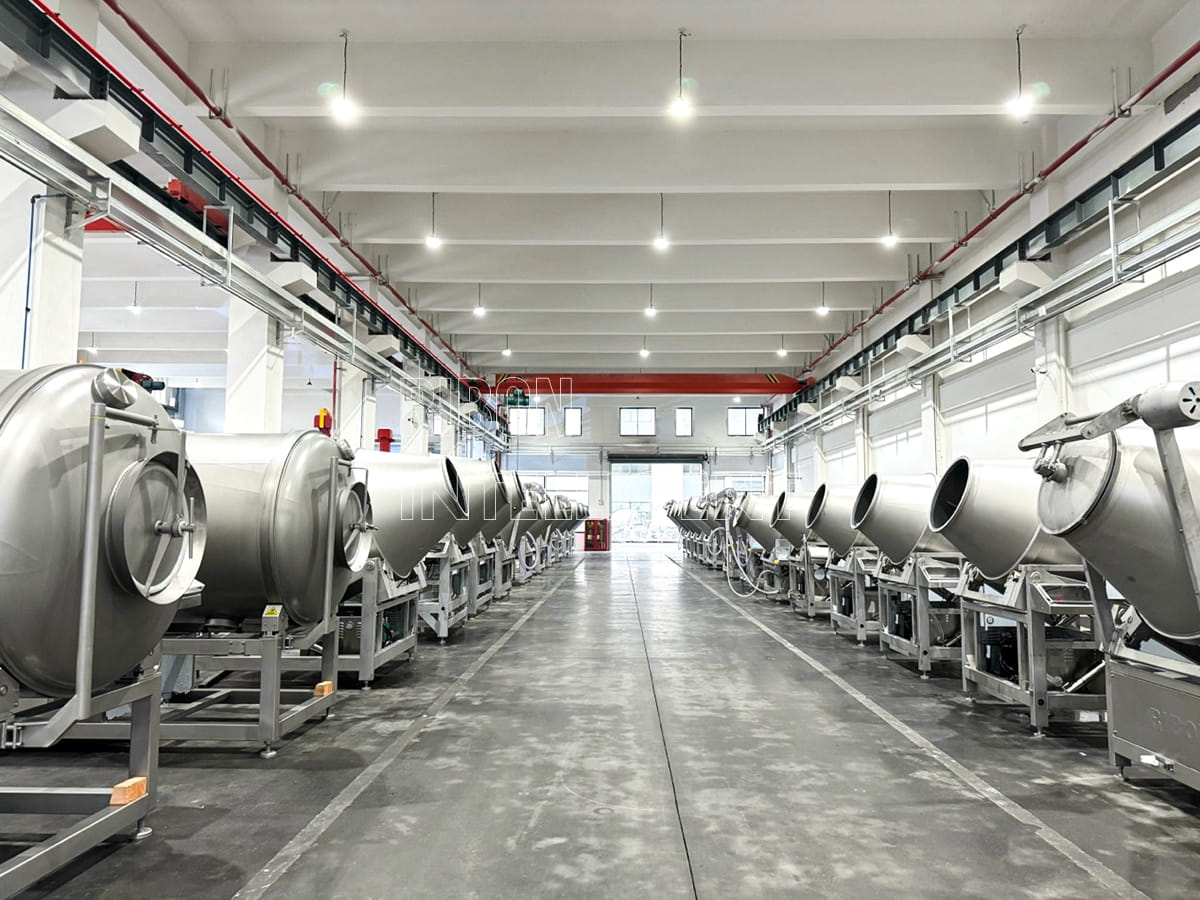

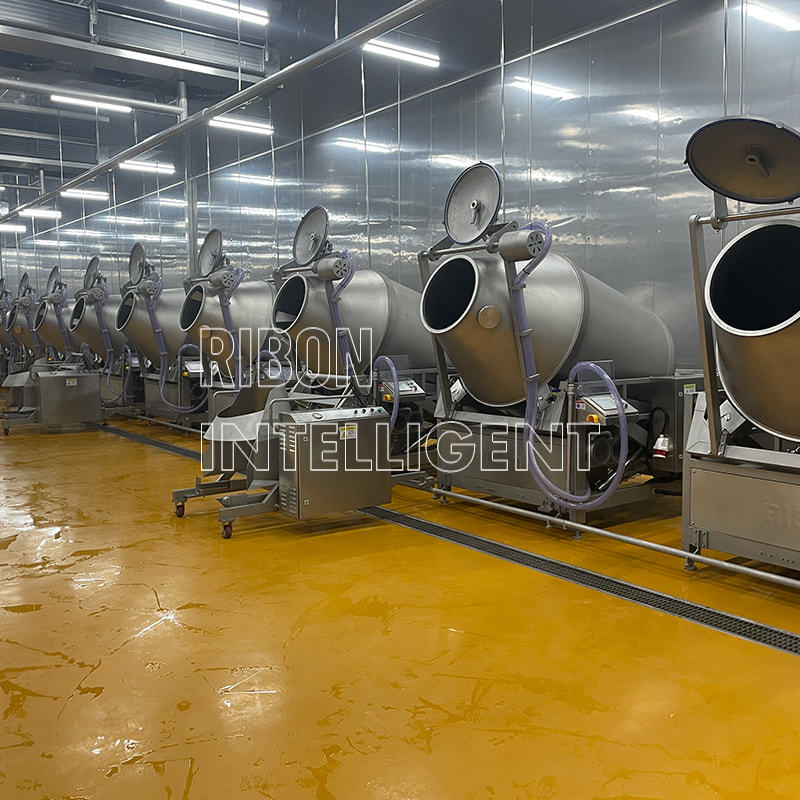

Take a look at: Ribon vacuum tumbler under production



Advantages:



1. RIBON ranks No.1 in Vacuum Tumbler production capacity in Asia





We not only produce, but FOCUS ON it.
Production capacity: 1000 units per year.



2. Superior Manufacturing Capability of Vacuum Tumblers

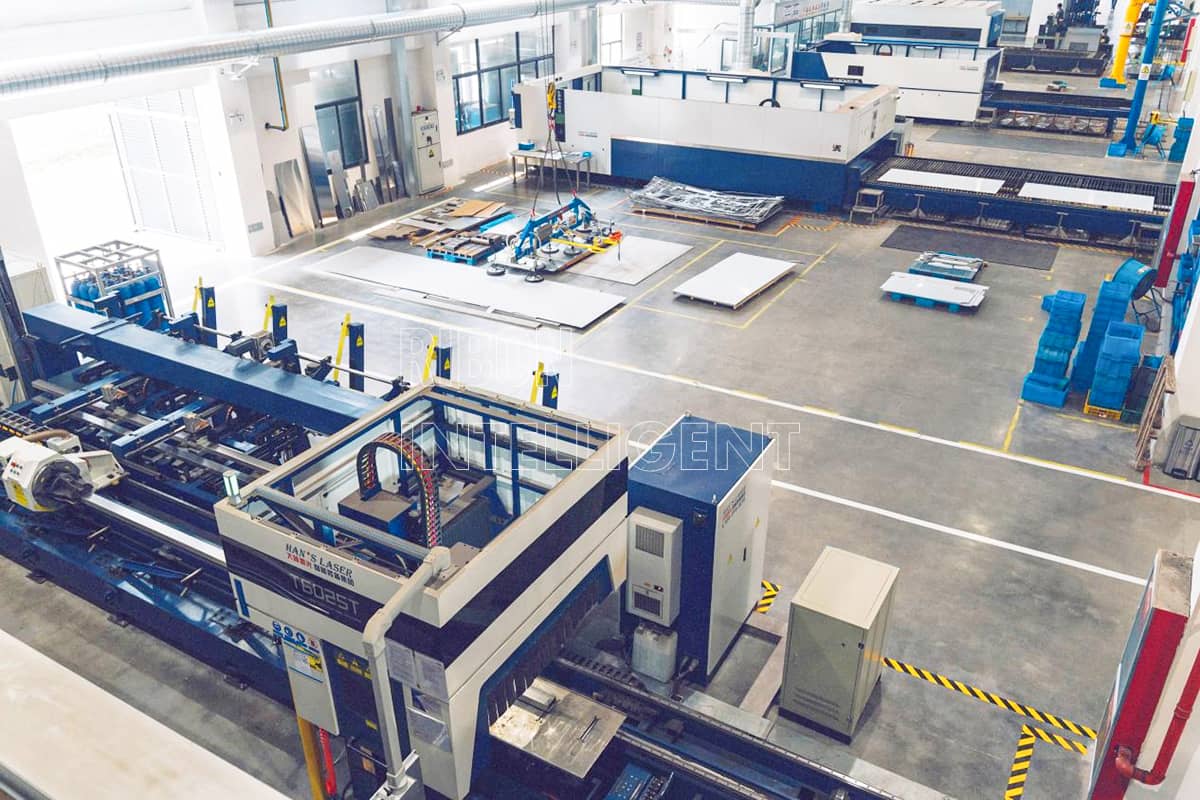

2.1 The related parts are cut using fully automated laser cutting equipment, ensuring high precision.





2.2 Fully automated welding ensures both welding strength and an aesthetic finish.

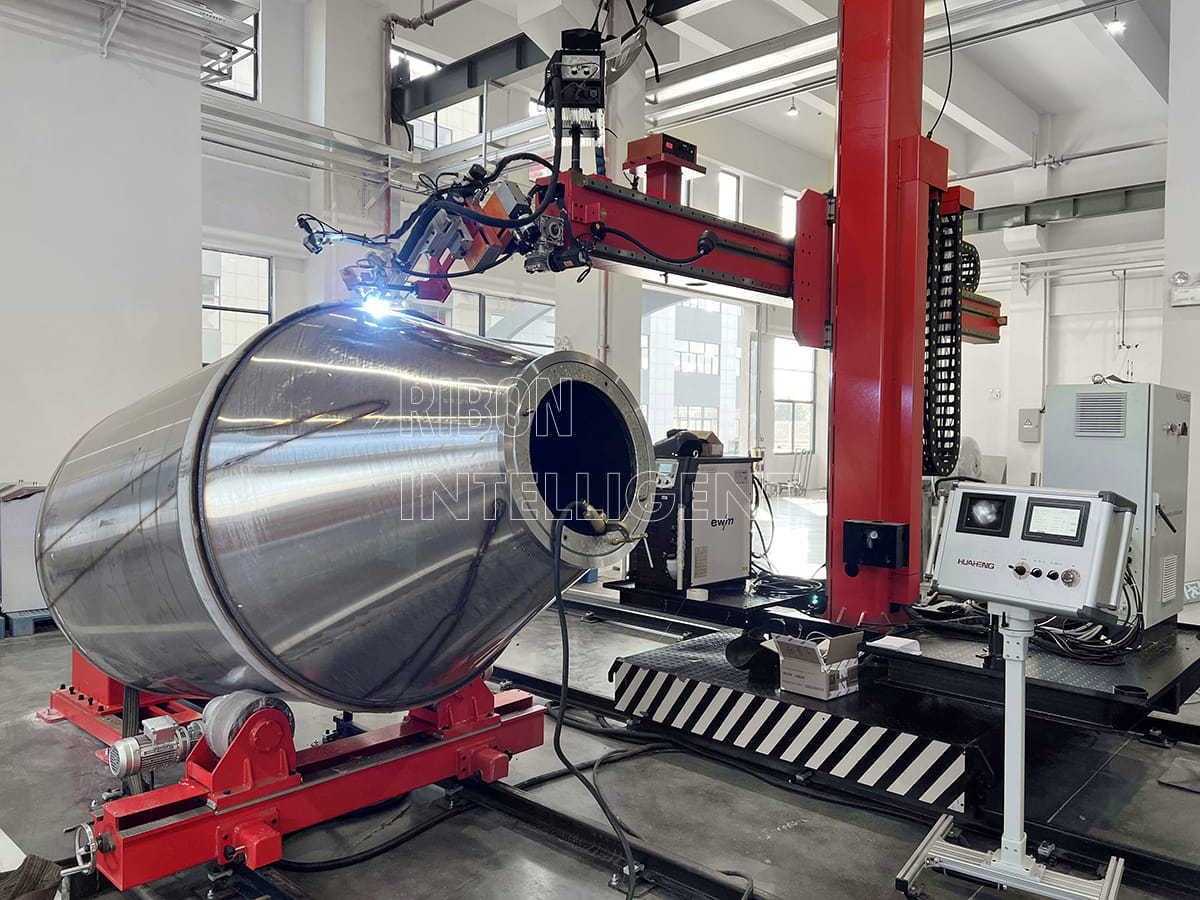

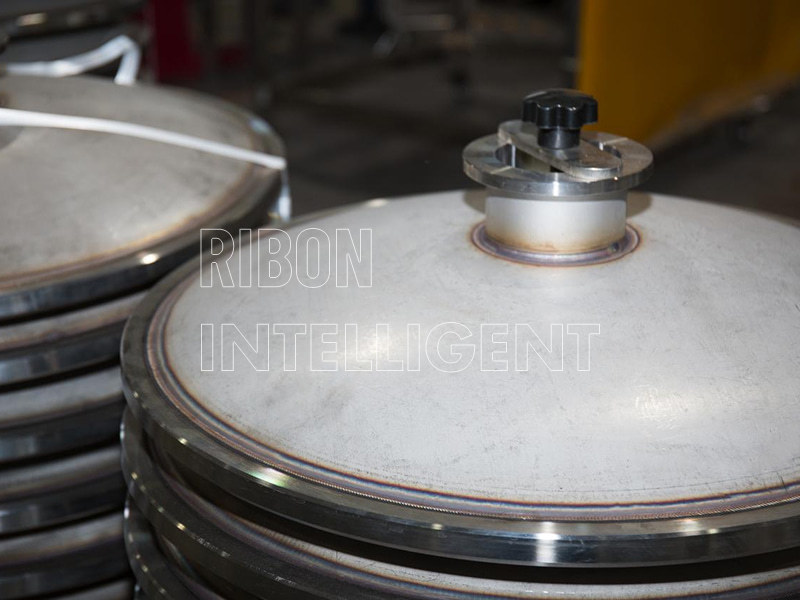

The tumbler lid and drum are welded using fully automatic welding machines with gas-shielded welding technology. This achieves deeper weld penetration than argon arc welding and ensures lifelong, maintenance-free performance.

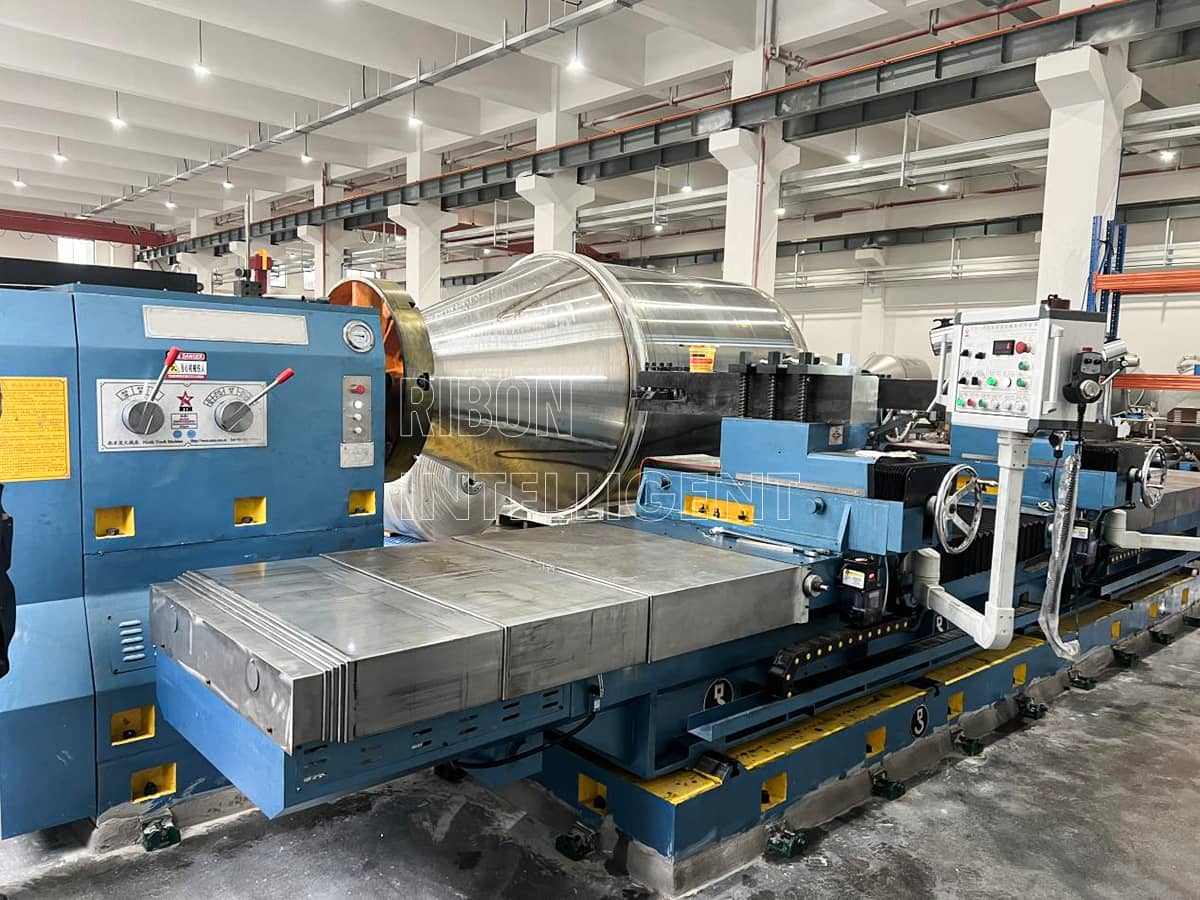

2.3 Drum balancing is performed after the drum welding is completed to guarantee the operational stability of the equipment during the customer's subsequent production.





3. Strict Quality Control for Key Components
We implement strict quality control throughout the entire manufacturing process, placing particular emphasis on key components that directly affect product performance and reliability. For these critical parts, we have established comprehensive QC procedures covering incoming material inspection, in-process parameter monitoring, and dimensional accuracy verification. Each batch of key components is subject to stringent testing based on predefined specifications, and only components that meet all criteria are approved for assembly.

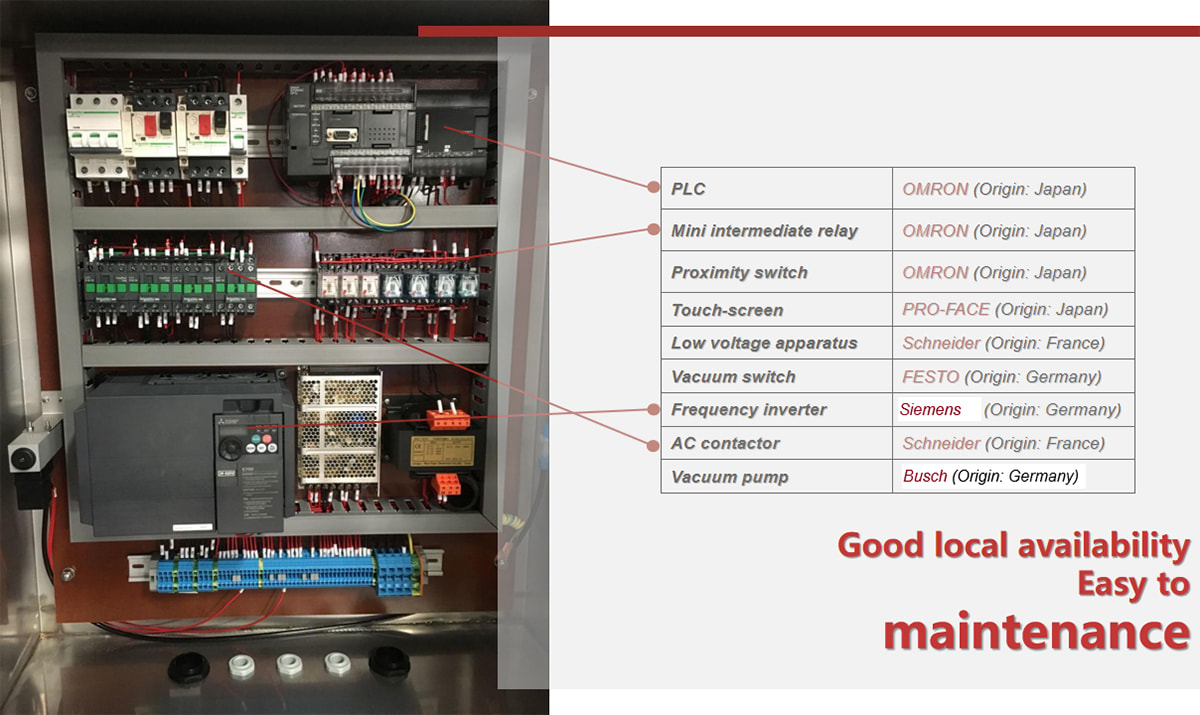

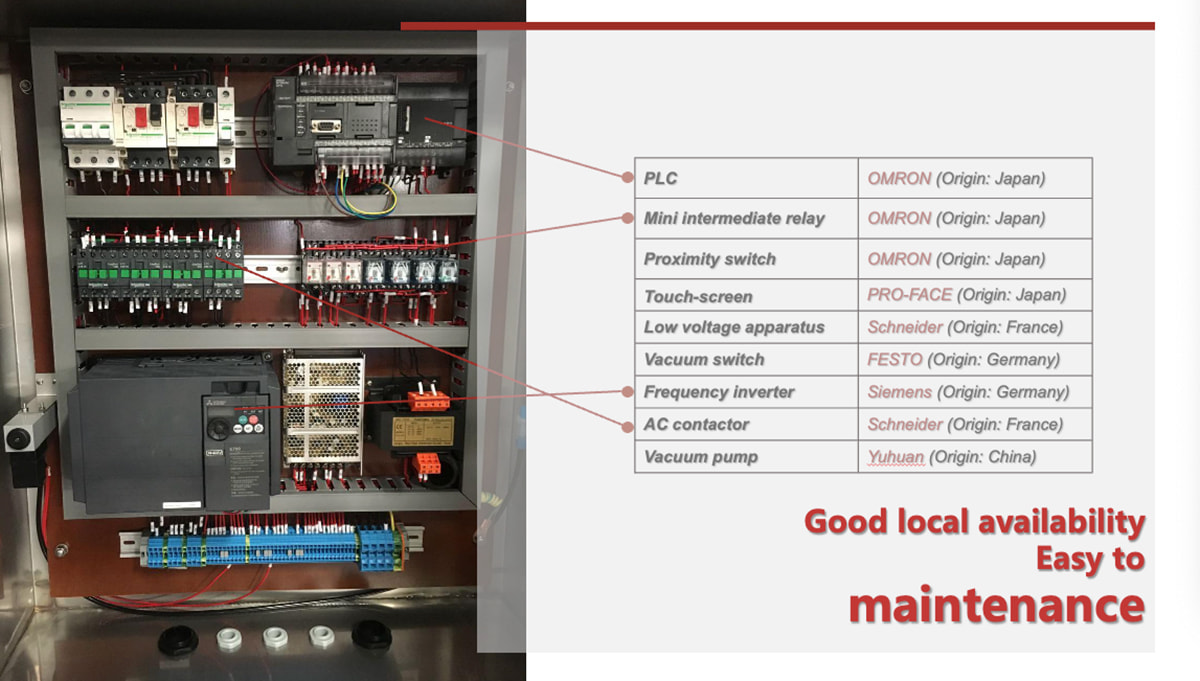

4. Electrical components are procured from world top international brands, enabling convenient local replacement.





5. High Yield Rate of RIBON Vacuum Tumblers

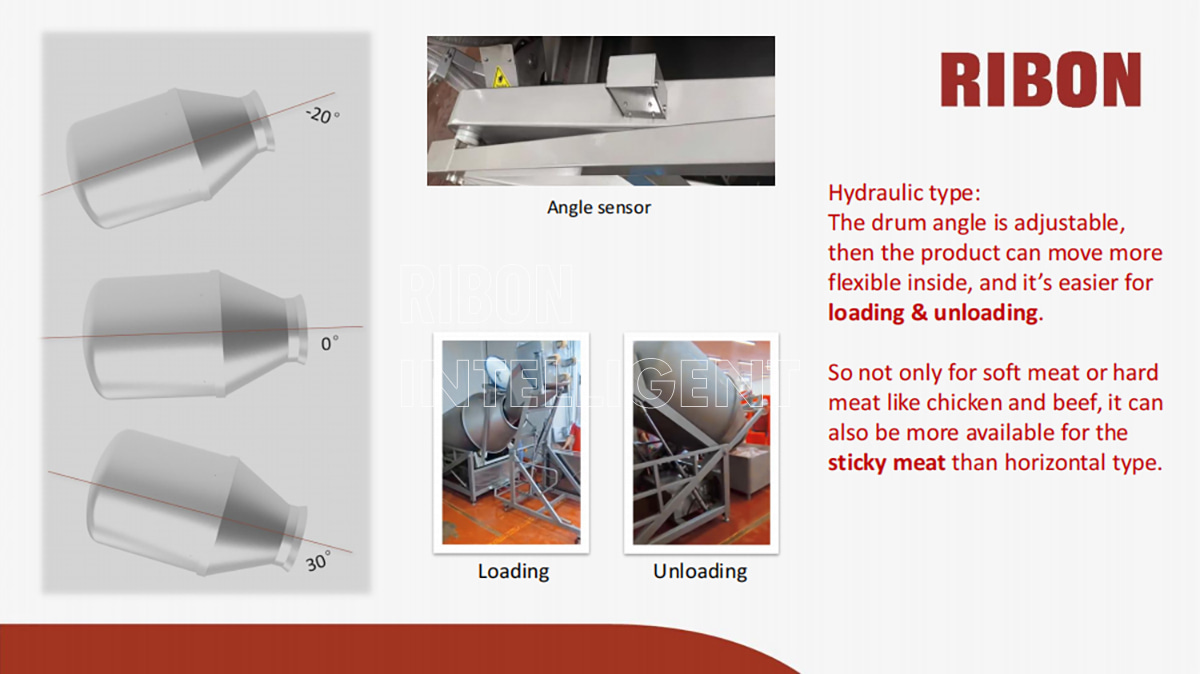

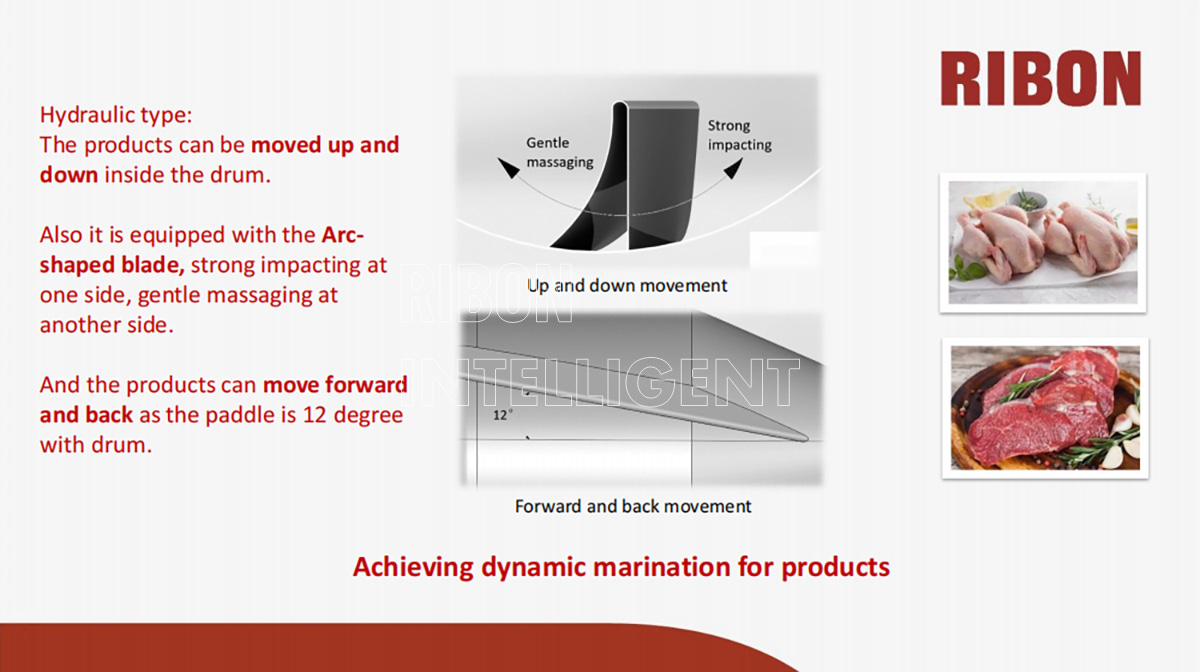

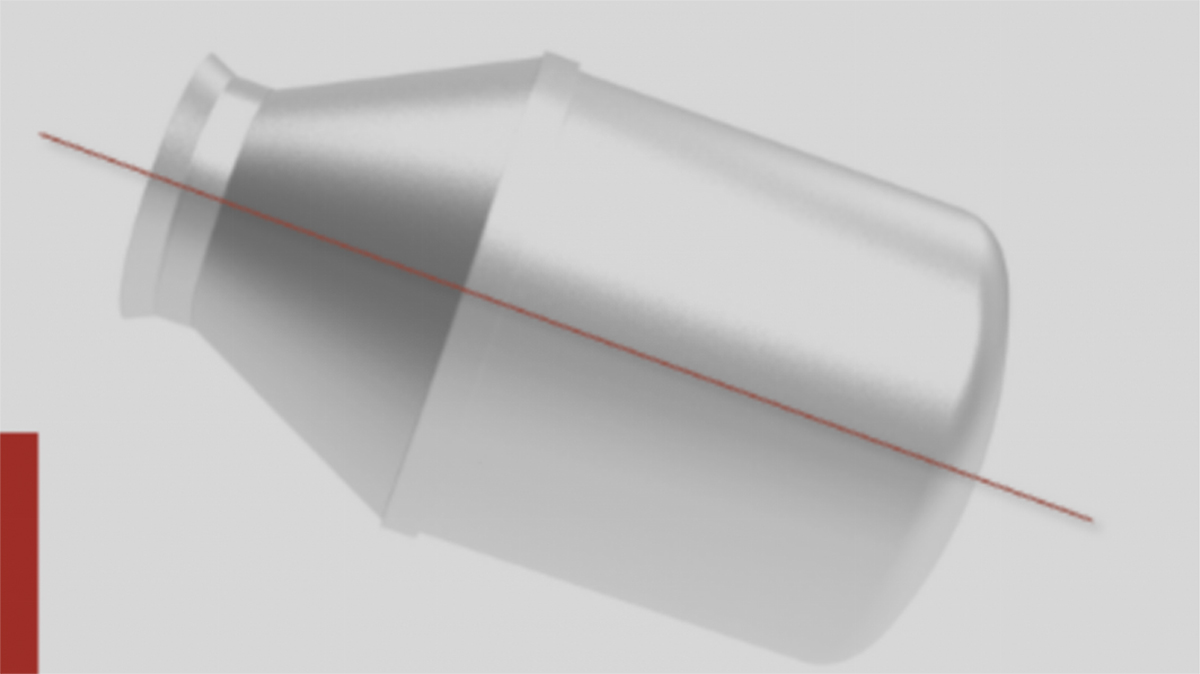

The drum can be adjusted to any tilting angle from 0 to 20 degrees to realize dynamic marination. Inside the drum, the 12-degree inclined arc-shaped carriers, which ensure excellent absorption of marinates.





Model/Name	Unit	RGR-800HY	RGR-1700HY	RGR-2500HY	RGR-3500HY
Power	kW	5.9	7.4	9.2	11.7
Water pressure	MPa	≥0.2	≥0.2	≥0.2	≥0.2
Durm capacity	L	800	1700	2500	3500
Max.loading capacity  kg (Different according to products)	kg	≤500	≤1000	≤1500	≤2100
Drum rotation speed	rpm	2～12	2～12	2～12	2～12
Vacuum degree	MPa	-0.085（altitude≤700m）	-0.085（altitude≤700m）	-0.085（altitude≤700m）	-0.085（altitude≤700m）
Cooling unit evaporation temperature	℃	-5	-5	-5	-5
Cooling unit supply pressure	MPa	≤0.15Mpa	≤0.15Mpa	≤0.15Mpa	≤0.15Mpa
Cooling capacity	Kcal/h	7250	12300	19250	25000
