Variable Airflow Smokehouse

Equipped with a frequency inverter and unique RUN-FLOW technology, this unit ensures uniform air circulation with variable airflow direction across three distinct modes, effectively maintaining consistent temperature and humidity throughout the process.

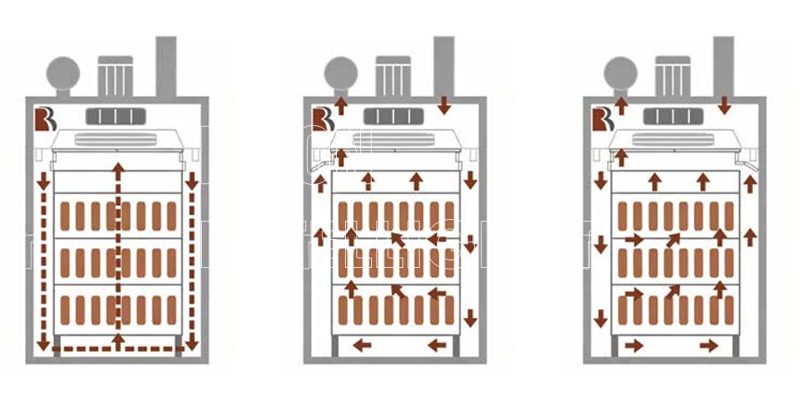

Mode 1: Vertical airflow

Mode 2 & 3: Alternating horizontal airflow



This design makes the unit suitable for a wide variety of products — whether hung on sticks or placed on mesh plates.

The variable airflow system is also applicable for pet food drying.





●Characteristics:

1. Modular Design: Easy Assembly & Container space saving
Modular chamber for easy assembly and container space saving





2. Heat Insulation & Sanitary Design: Energy-Saving & Hygienic
Chamber walls insulated with polyurethane foam (or rock wool) for heat isolation; small-angle solid trolley ramp ensures safety and minimizes product contamination.





3. High-Quality Components: Stable & Energy-Efficient Performance
World-famous electrical/pneumatic components ensure stability; special low-speed, high-pressure fan offers high efficiency, low energy consumption and low noise.





4. Smoking Control: Adjustable Smoke & Safe Operation
External wood chip smoke generator with adjustable smoke volume/density; fire alarm ensures safety, complying with food machinery standards. Optional liquid smoke atomizer, no emission and easy to maintenance.





5. Precision Temp & Humidity Control: Stable Process
Humidity control valve regulates humidity; Lind Weit drain valve collects condensate, improving steam utilization and temperature uniformity.





6. Modular CIP cleaning system allows free selection of cleaning positions for efficiency.



7. Intelligent Control: PLC Automatic Operation & Data Management
PLC automatic control allows touch-screen setting of parameters, recipes and programs, with real-time status display, adjustment and recording for efficient operation.





8. Fault & Power-off Protection: Convenient Maintenance & Continuous Operation
Intelligent fault diagnosis displays faults on the touch screen for easy maintenance; restarts with original data after power outage/fault to reduce production loss.

9. RIBON ranks No. 1 in Smokehouse production capacity and capability in Asia.
We not only produce, but FOCUS ON it.
Production capacity: 1000 units per year.





Take a look at our assembly workshop of smokehouse:





10. Strict Quality Control for Key Components
We implement strict quality control throughout the entire manufacturing process, placing particular emphasis on key components that directly affect product performance and reliability. For these critical parts, we have established comprehensive QC procedures covering incoming material inspection, in-process parameter monitoring, and dimensional accuracy verification. Each batch of key components is subject to stringent testing based on predefined specifications, and only components that meet all criteria are approved for assembly.





RYX Series

Trolley	Capacity(kg)	Power(kW)	Electric heating Power(kW)	Steam consumption(kg/h)
1	250	6.1	30	40
2	500	10.1	60	80
3	750	14.1	90	120
4	1000	18.1	120	160

RYXN Series

Trolley	Capacity(kg)	Power(kW)	Steam consumption(kg/h)
2	500	9	80
4	1000	17	160

*The above technical data is for reference only; it may change according to different configurations.
