Horizontal Airflow Smokehouse

●Function:

Drying, Cooking, Smoking, Reddening, Showering

Optional Cold smoking and baking

Contact Us Brochure
Product Details:
●Heating Resources:
Steam, Electric		 ●Smoking Options
Woodchip smoking or liquid smoking		 ●Capacity:
1- 8 trolleys flexible design



●Characteristics:

1. Modular Design: Easy Assembly & Container space saving
Modular chamber for easy assembly and container space saving





2. Heat Insulation & Sanitary Design: Energy-Saving & Hygienic
Chamber walls insulated with polyurethane foam (or rock wool) for heat isolation; small-angle solid trolley ramp ensures safety and minimizes product contamination.





3. High-Quality Components: Stable & Energy-Efficient Performance
World-famous electrical/pneumatic components ensure stability; special low-speed, high-pressure fan offers high efficiency, low energy consumption and low noise.





4. Smoking Control: Adjustable Smoke & Safe Operation
External wood chip smoke generator with adjustable smoke volume/density; fire alarm ensures safety, complying with food machinery standards. Optional liquid smoke atomizer, no emission and easy to maintain.





5. Precision Temp & Humidity Control: Stable Process
Humidity control valve regulates humidity; Lind Weit drain valve collects condensate, improving steam utilization and temperature uniformity.





6. Modular CIP cleaning system allows free selection of cleaning positions for efficiency.



7. Horizontal airflow, stabilizing temperature and humidity during processing to guarantee consistent product color and flavor.





8. Intelligent Control: PLC Automatic Operation & Data Management
PLC automatic control allows touch-screen setting of parameters, recipes and programs, with real-time status display, adjustment and recording for efficient operation.





9. Fault & Power-off Protection: Convenient Maintenance & Continuous Operation
Intelligent fault diagnosis displays faults on the touch screen for easy maintenance; restarts with original data after power outage/fault to reduce production loss.



10. RIBON ranks No. 1 in Smokehouse production capacity and capability in Asia.
We not only produce, but FOCUS ON it.
Production capacity: 1000 units per year.





Take a look at our assembly workshop of smokehouse:





11. Strict Quality Control for Key Components
We implement strict quality control throughout the entire manufacturing process, placing particular emphasis on key components that directly affect product performance and reliability. For these critical parts, we have established comprehensive QC procedures covering incoming material inspection, in-process parameter monitoring, and dimensional accuracy verification. Each batch of key components is subject to stringent testing based on predefined specifications, and only components that meet all criteria are approved for assembly.





RYXS series



Trolley

Capacity(kg)

Power(kW)

Electric heating Power(kW)

Steam consumption(kg/h)

2

500

11.5

60

80

4

1000

20.85

120

160

*The above technical data is for reference only; it may change according to different configurations.

Related Products

Quality changes the world,
Innovation brings the future.

Zhejiang Ribon Intelligent Equipment Co., Ltd. was founded in 2003 by Mr. Shi Ming and we specialize in the R&D and manufacturing of meat processing machinery. Horizontal Airflow Smokehouse Suppliers and Company in China.

As a professional enterprise of meat processing smokehouse, vacuum tumblers and cutting and deboning lines in China, we also exported these solutions to the world since the year of 2003.

The technology and solutions have always been optimized and now Ribon's solutions are widely in use across the whole world. And we will constantly develop our systems further, to bring you better technologies and service.

  • CE Certificates
  • CE Certificates
  • CE Certificates
  • Energy Management System Certificate
  • Quality Management System
  • Occupational Health And Safety Management System
  • Environmental Management System

News

SEND MESSAGE

Leave Your Message*

Product Knowledge

What types of food can be smoked using this smokehouse?

The Horizontal Airflow Smokehouse is versatile and suitable for smoking a wide range of food products. Some of the types of food that can be smoked using this smokehouse include:
Meat: Various cuts of meat such as pork, beef, poultry (chicken, turkey, duck), lamb, and game meats can be smoked to enhance flavor and preservation.
Fish and Seafood: Fish species like salmon, trout, mackerel, haddock, and herring are commonly smoked. Additionally, seafood like shrimp, scallops, and mussels can also be smoked to add a smoky flavor.
Sausages and Processed Meats: Different types of sausages, including traditional sausages, cured meats, and deli meats, can be smoked for flavor development and preservation.
Cheese: Some varieties of cheese, such as cheddar, gouda, mozzarella, and provolone, can be smoked to add depth of flavor and aroma.
Vegetables: Certain vegetables like eggplant, mushrooms, peppers, and tomatoes can be smoked to create unique flavors and textures.
Tofu and Plant-Based Proteins: Tofu and other plant-based proteins can be smoked to impart a smoky flavor and enhance their taste profiles.
Nuts: Nuts like almonds, pecans, and cashews can be smoked to add a smoky dimension to their natural flavors.
Spices and Herbs: Some spices and herbs can be smoked to intensify their flavors, which can then be used in culinary applications.

How does the smokehouse ensure even smoking and cooking of food products?
The Horizontal Airflow Smokehouse employs several design features and control systems to ensure even smoking and cooking of food products:
Specially Designed Air Circulation System: The smokehouse is equipped with a specially designed air circulation system that ensures consistent airflow throughout the cooking chamber. This system helps distribute smoke evenly around the food products, ensuring uniform smoking.

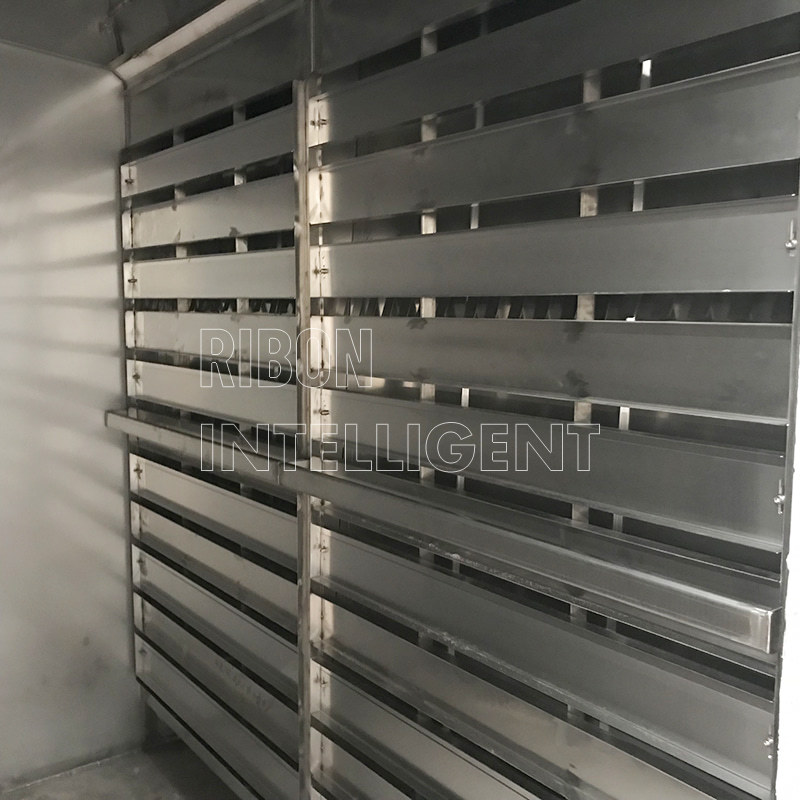

Horizontal Airflow: The smokehouse utilizes a horizontal airflow design, where the smoke and heat are circulated horizontally across the cooking chamber. This ensures that all areas of the chamber receive a consistent amount of smoke and heat, resulting in even smoking and cooking.
Low Air Speed, High Air Pressure Fans: The smokehouse is equipped with fans that have low air speed but high air pressure. These fans help to gently circulate the air and smoke throughout the chamber without causing turbulence or uneven distribution.
PID Temperature Control Mode: The Horizontal Airflow Smokehouse employs a PID (Proportional-Integral-Derivative) temperature control mode, which ensures precise control over the temperature inside the chamber. This helps maintain a consistent temperature throughout the smoking process, ensuring even cooking of the food products.
Optimal CIP Cleaning System: A clean cooking chamber is essential for even smoking and cooking. The smokehouse is equipped with an optimal CIP (Clean-in-Place) cleaning system, which ensures thorough cleaning of the chamber between batches. This helps prevent any residue or buildup that could interfere with airflow and heat distribution.
Modular Construction of Chambers: The chambers of the smokehouse are constructed using a modular design, allowing for easy customization and optimization of airflow patterns. This ensures that all areas of the chamber receive adequate smoke and heat, resulting in even smoking and cooking of the food products.
Humidity Control: The smokehouse is equipped with a humidity controlling valve, which allows for precise adjustment of humidity levels inside the chamber. This helps create the ideal environment for smoking and cooking, ensuring consistent results across all batches.
