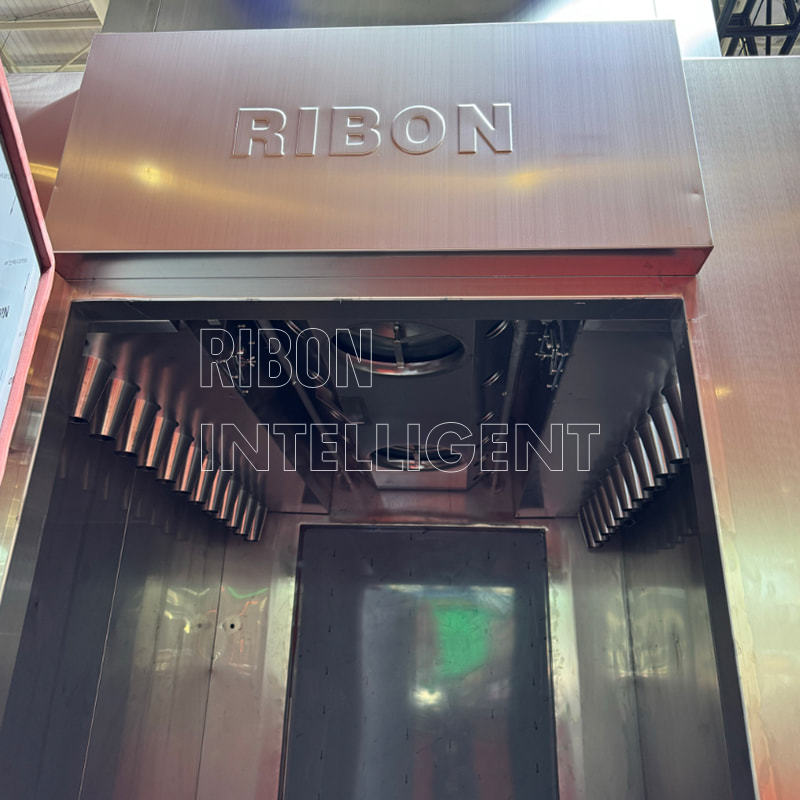

Central Heating Smokehouse

Advanced Air Circulation System

Dual independent fan motors drive a two-duct air circulation system. The air velocity at the left and right outlets is precisely controlled via variable frequency drives. A centrally positioned heat ex-changer provides a large heat transfer surface area, delivering exceptional thermal efficiency.



PLC with Touch Screen Control

A PLC-based control system with a touch screen interface provides real-time display of the smokehouse's operating status. Parameters are easy to set and modify, and operational data is automatically recorded.

Fault Diagnosis System

An integrated fault diagnostics function simplifies daily maintenance and troubleshooting.

Optimized Interior Geometry

Coved corners integrated into the bottom of the smokehouse enhance airflow velocity, eliminate airflow degradation, and facilitate easy cleaning.

Aerodynamic Duct Design

Specially engineered air ducts on both sides ensure uniform air distribution throughout the chamber while enabling straightforward sanitation access.

Active Exhaust System

A powered exhaust system ensures timely evacuation of hot air and humidity, resulting in high drying efficiency.

High-Performance CIP Cleaning System

The clean-in-place (CIP) system allows independent cleaning of the main chamber, air chamber and smoke pipe, ensuring thorough

sanitation.

●Characteristics:



1. Modular Design: Easy Assembly & Container space saving
Modular chamber for easy assembly and container space saving





2. Heat Insulation & Sanitary Design: Energy-Saving & Hygienic
Chamber walls insulated with polyurethane foam (or rock wool) for heat isolation; small-angle solid trolley ramp ensures safety and minimizes product contamination.





3. High-Quality Components: Stable & Energy-Efficient Performance
World-famous electrical/pneumatic components ensure stability; special low-speed, high-pressure fan offers high efficiency, low energy consumption and low noise.





4. Smoking Control: Adjustable Smoke & Safe Operation
External wood chip smoke generator with adjustable smoke volume/density; fire alarm ensures safety, complying with food machinery standards. Optional liquid smoke atomizer, no emission, and easy to maintain.





5. Precision Temp & Humidity Control: Stable Process
Humidity control valve regulates humidity; Lind Weit drain valve collects condensate, improving steam utilization and temperature uniformity.





6. Modular CIP cleaning system allows free selection of cleaning positions for efficiency.



7. Intelligent Control: PLC Automatic Operation & Data Management
PLC automatic control allows touch-screen setting of parameters, recipes and programs, with real-time status display, adjustment and recording for efficient operation.





8. Fault & Power-off Protection: Convenient Maintenance & Continuous Operation
Intelligent fault diagnosis displays faults on the touch screen for easy maintenance; restarts with original data after power outage/fault to reduce production loss.

9. RIBON ranks No. 1 in Smokehouse production capacity and capability in Asia.
We not only produce, but FOCUS ON it.
Production capacity: 1000 units per year.





Take a look at our assembly workshop of smokehouse:



10. Strict Quality Control for Key Components
We implement strict quality control throughout the entire manufacturing process, placing particular emphasis on key components that directly affect product performance and reliability. For these critical parts, we have established comprehensive QC procedures covering incoming material inspection, in-process parameter monitoring, and dimensional accuracy verification. Each batch of key components is subject to stringent testing based on predefined specifications, and only components that meet all criteria are approved for assembly.
