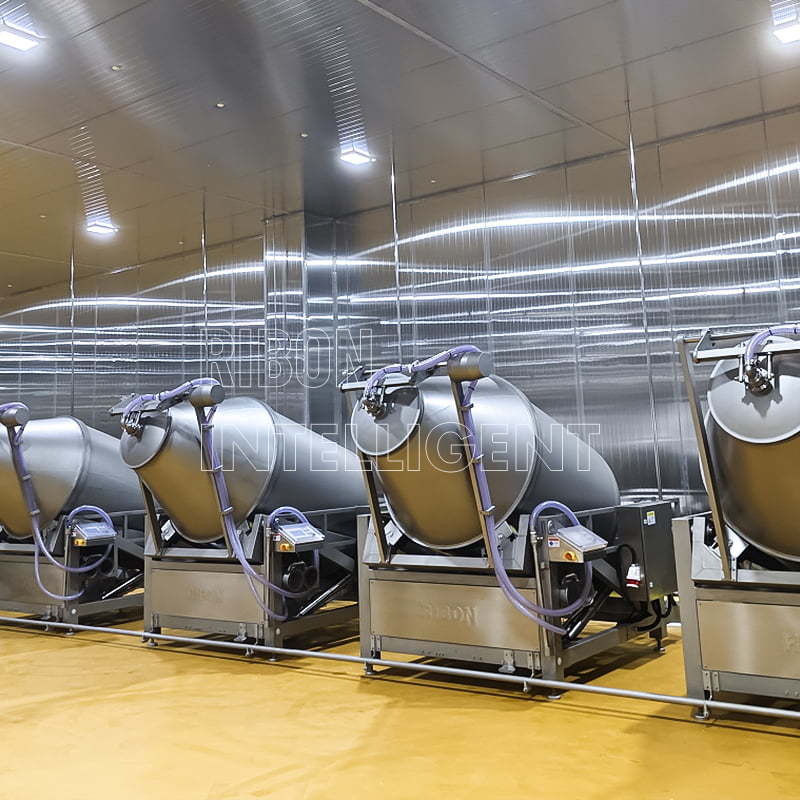

Hydraulic Vacuum Tumbler

●Function:

The meat will be massaged, threshed and held by rotating paddle under forced circulation and be processed under vacuum and natural pressure condition alternately and that will accelerate the brine infiltration and the dis­solving and extraction of parapeptone. By this method, the product ratio will be improved.

●Characteristics:

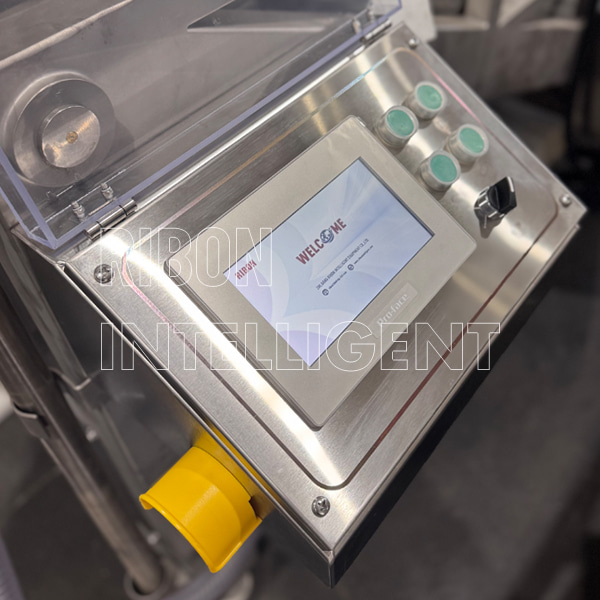

◇PLC and touch screen controlled.

◇Continuous vacuum or breathing rotation.

◇Speed can be adjusted from 2 to 12 rpm by the frequency inverter.

◇With the tiltable frame and hydraulic system.

◇Different loading options for different products.

◇Optional V-shaped and blade -shaped paddles for different products.

◇Adopt water-sealed vacuum pump.

◇Optional cooling function.

ADVANTAGES:

1. RIBON ranks No.1 in Vacuum Tumbler production capacity in Asia
We not only produce, but FOCUS ON it.

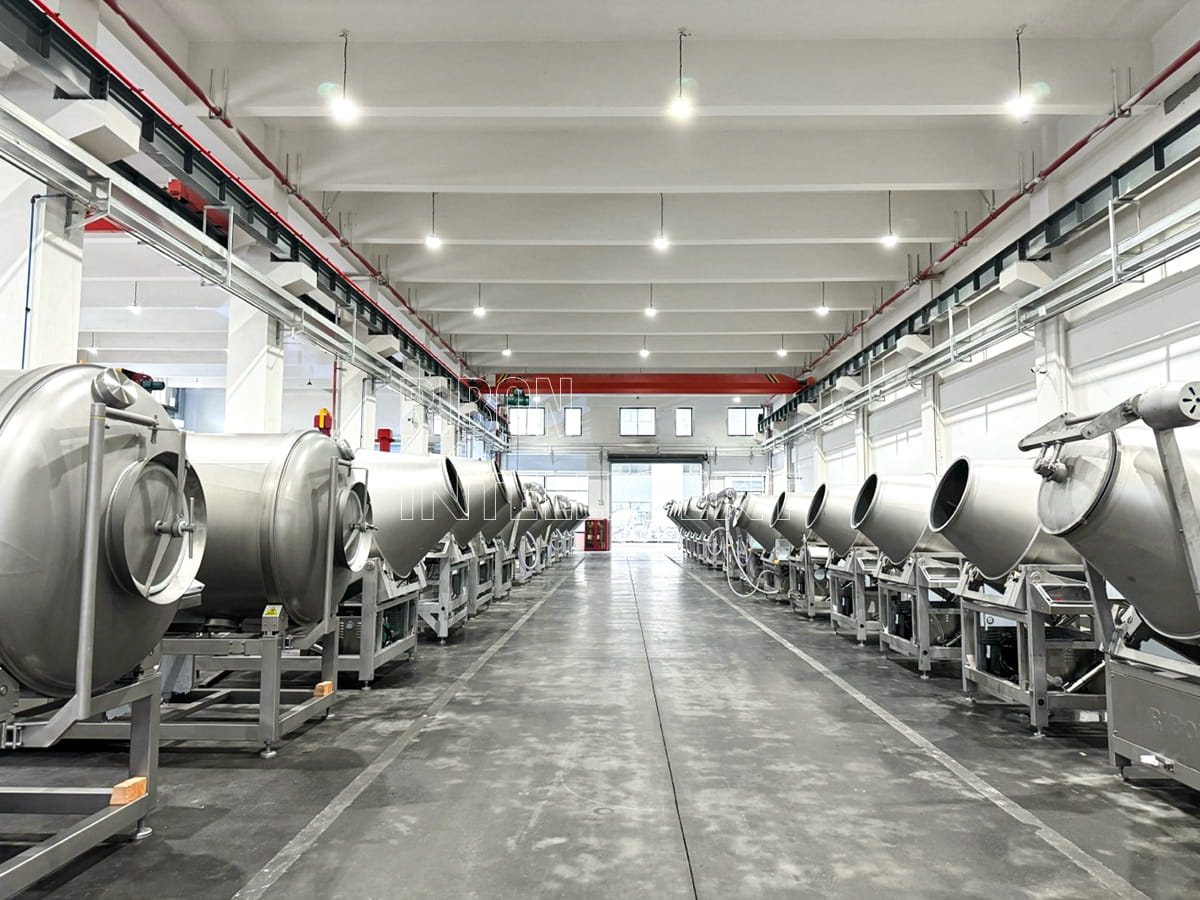

Production capacity: 1000 units per year.

Take a look at: Ribon vacuum tumbler under production

2. Superior Manufacturing Capability of Vacuum Tumblers

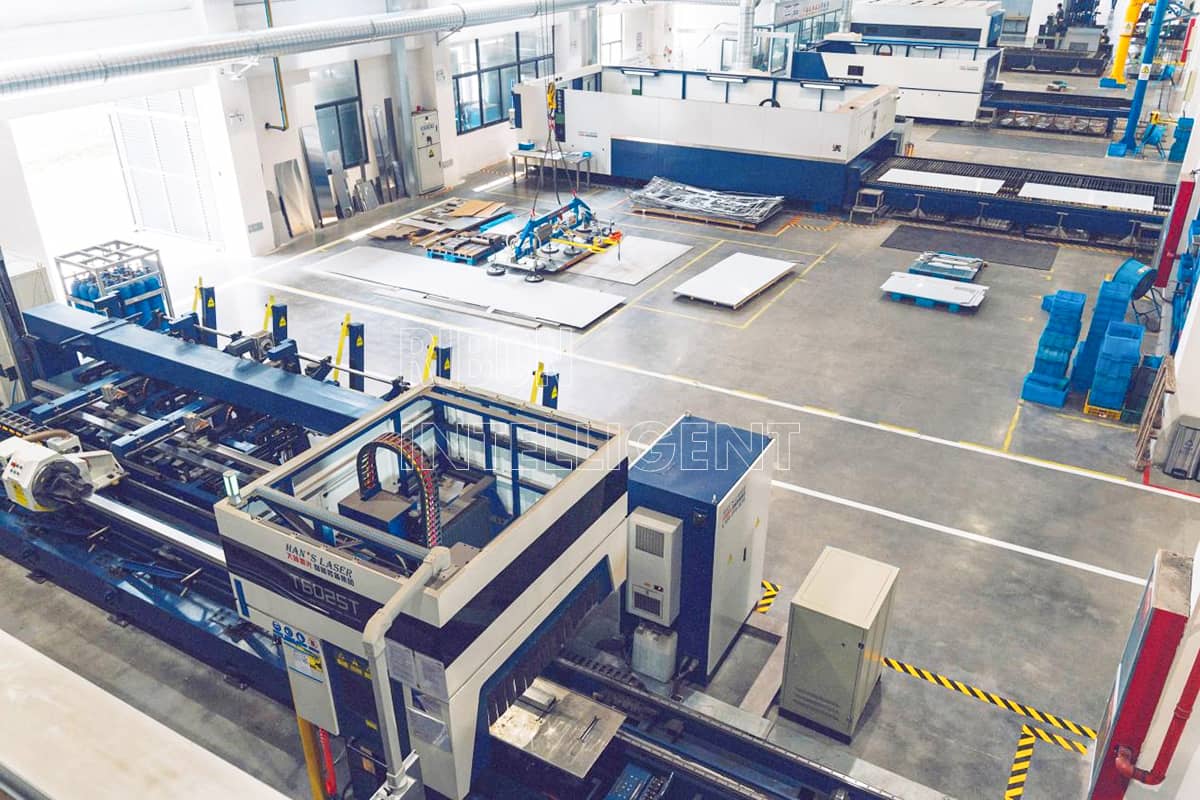

2.1 The related parts are cut using fully automated laser cutting equipment, ensuring high precision.

2.2 Fully automated welding ensures both welding strength and an aesthetic finish.

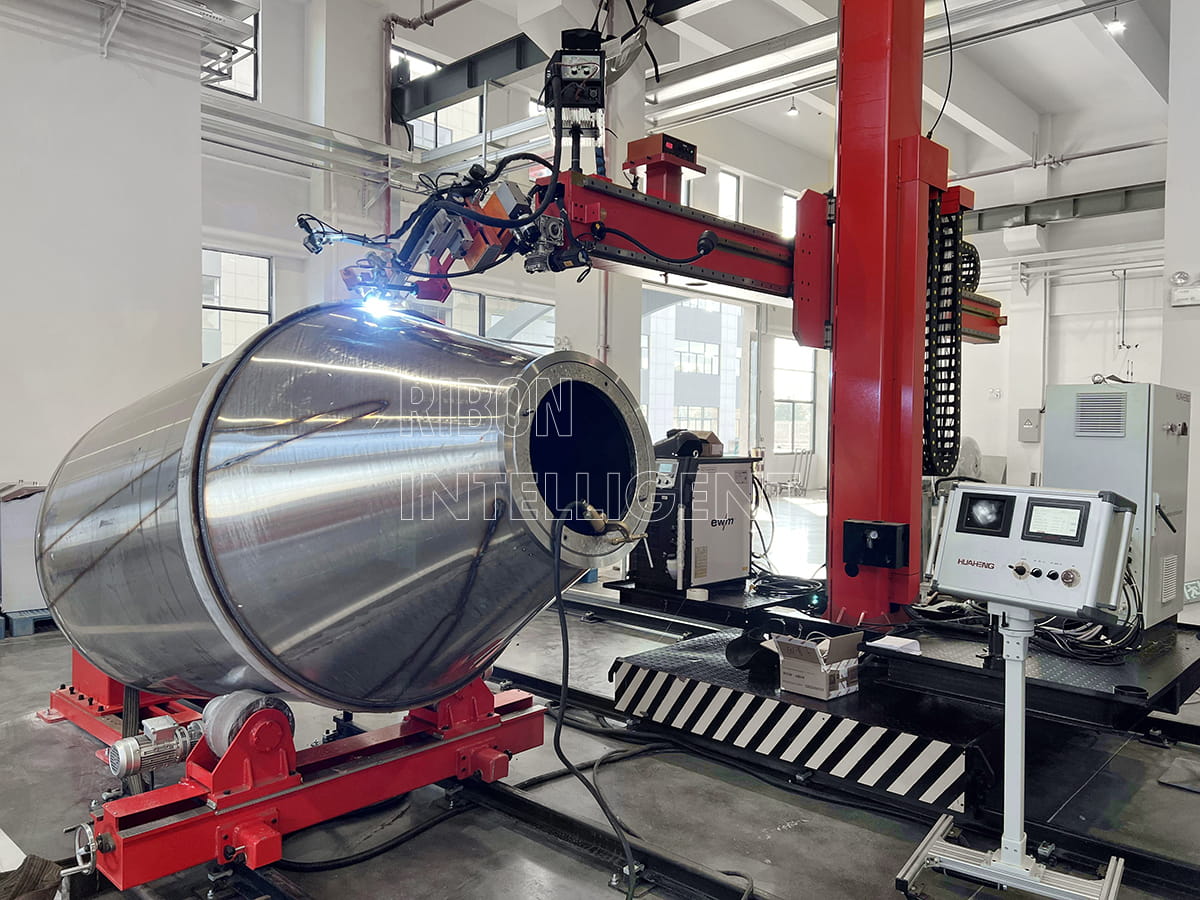

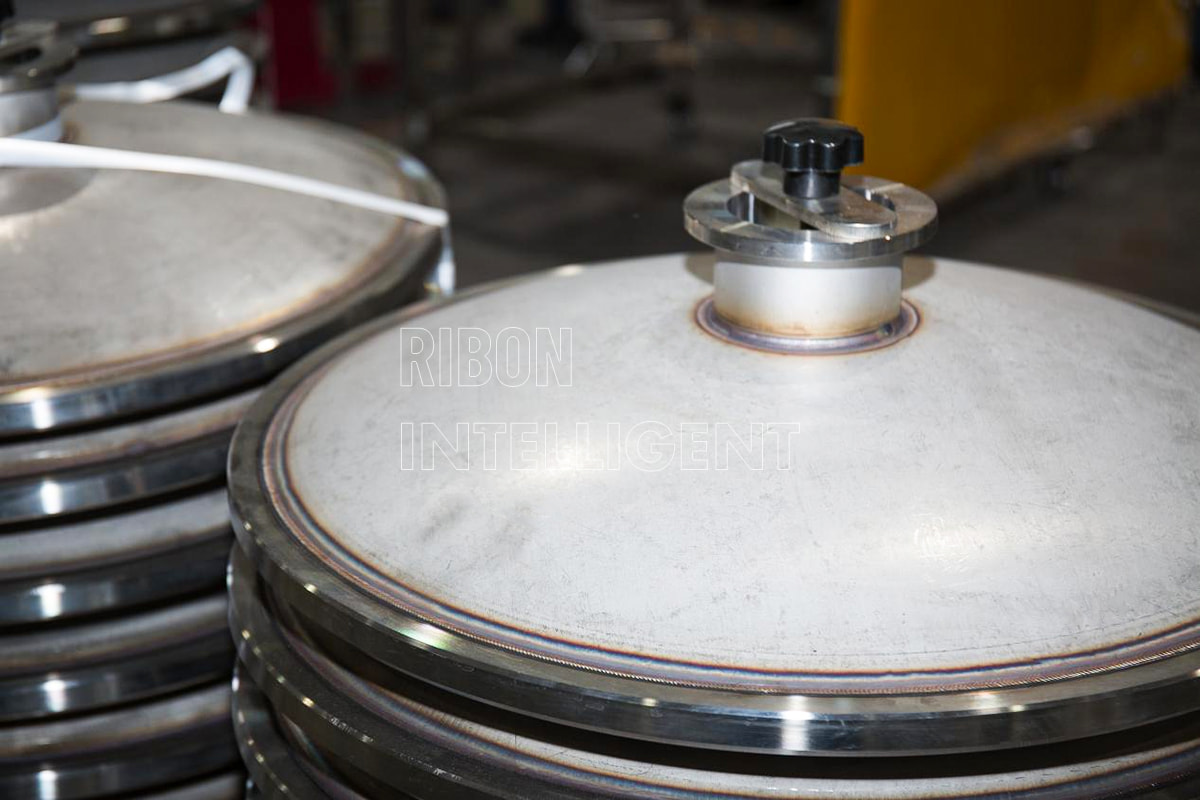

The tumbler lid and drum are welded using fully automatic welding machines with gas-shielded welding technology. This achieves deeper weld penetration than argon arc welding and ensures lifelong, maintenance-free performance.

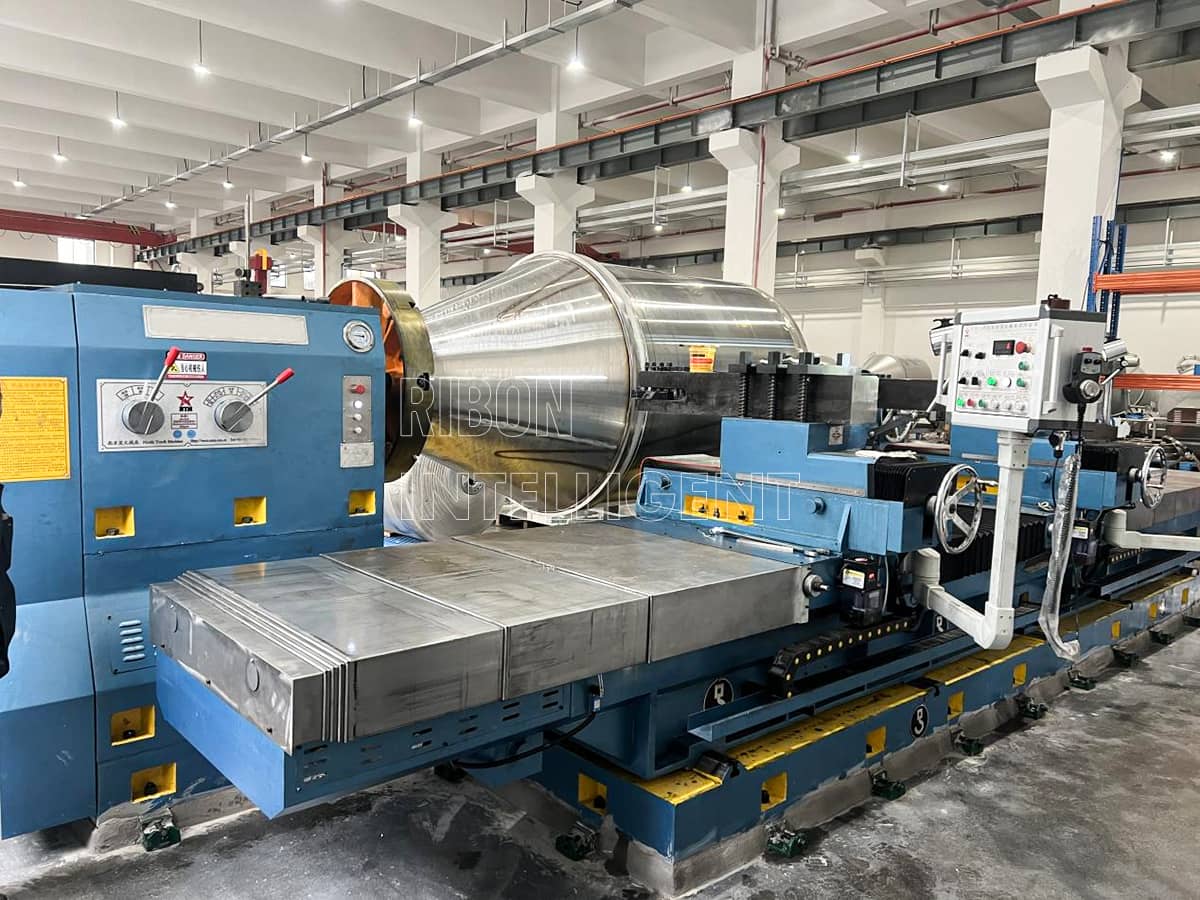

2.3 Drum balancing is performed after the drum welding is completed to guarantee the operational stability of the equipment during the customer's subsequent production.

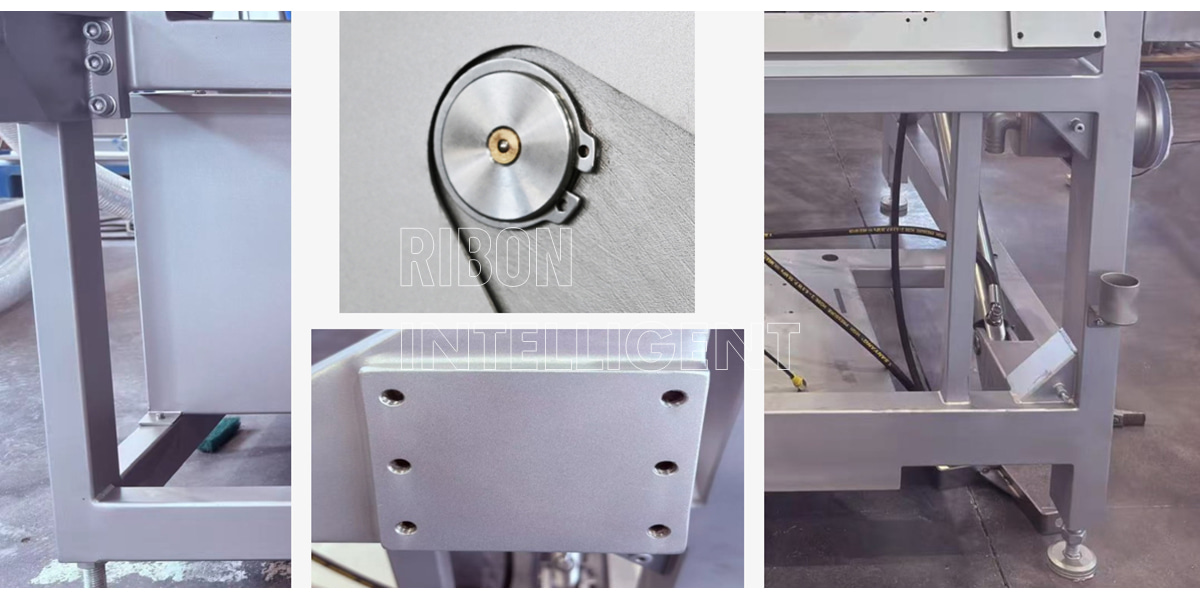

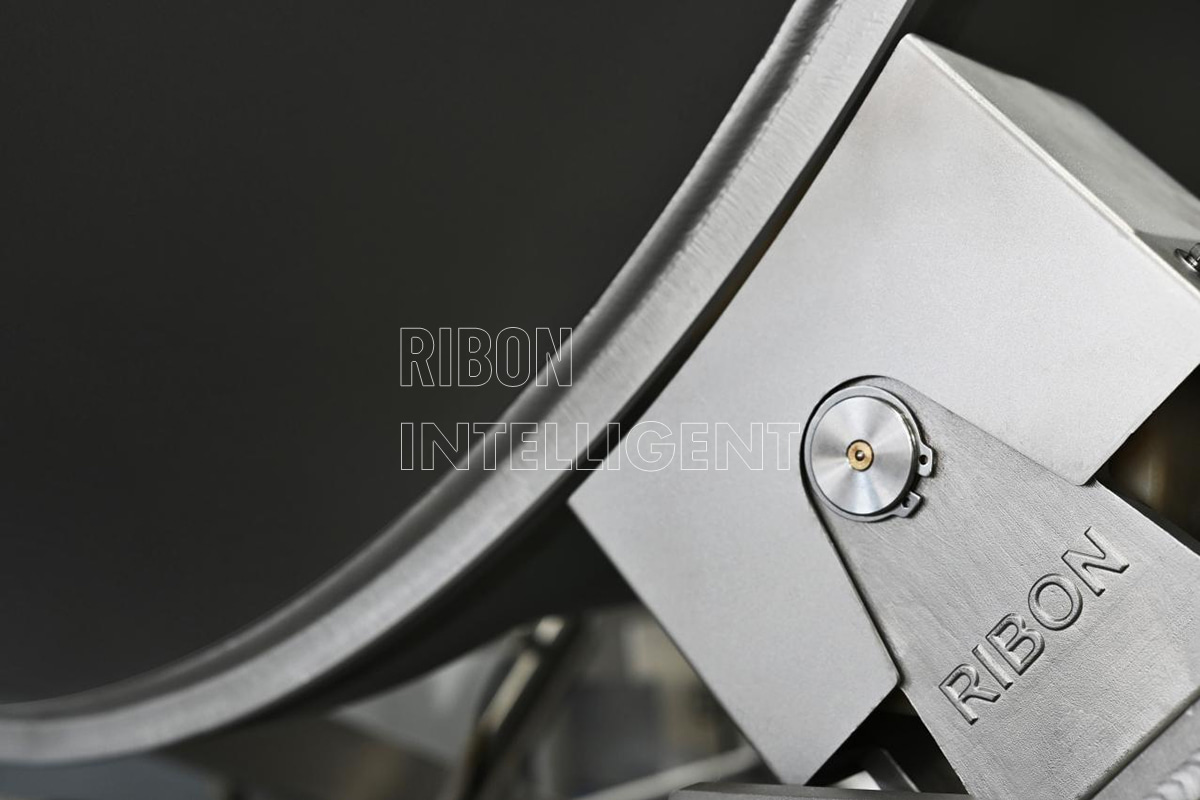

3. Strict Quality Control for Key Components
We implement strict quality control throughout the entire manufacturing process, placing particular emphasis on key components that directly affect product performance and reliability. For these critical parts, we have established comprehensive QC procedures covering incoming material inspection, in-process parameter monitoring, and dimensional accuracy verification. Each batch of key components is subject to stringent testing based on predefined specifications, and only components that meet all criteria are approved for assembly.

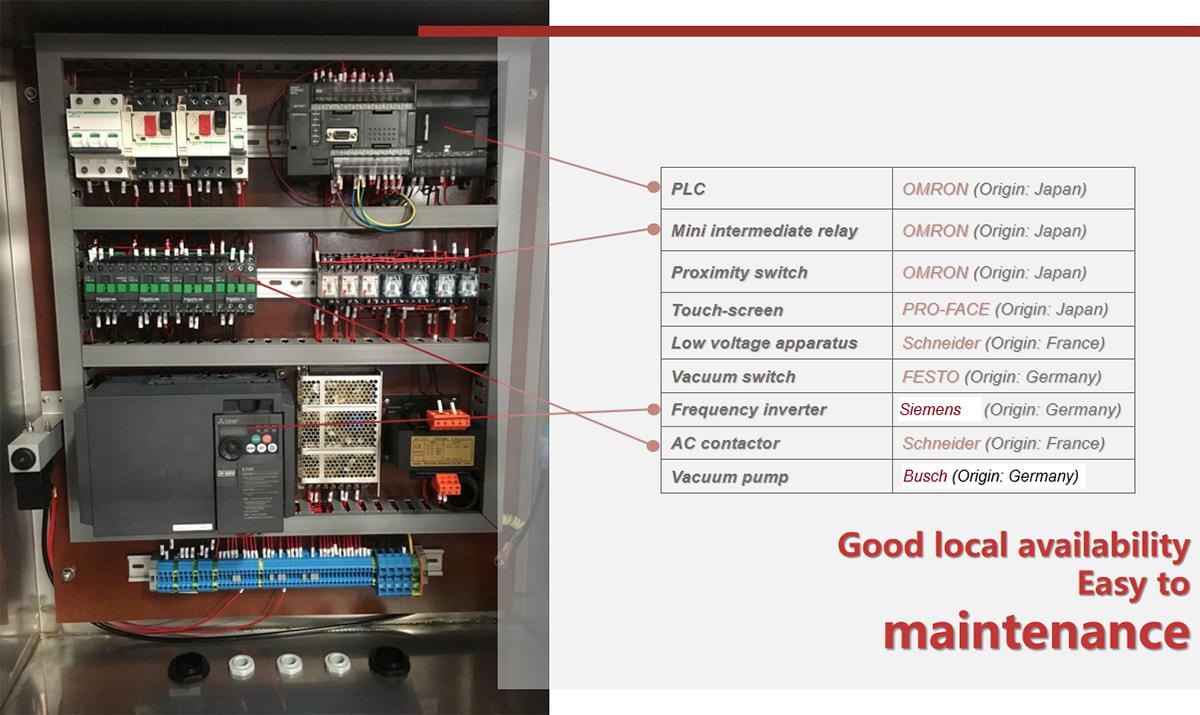

4. Electrical components are procured from world top international brands, enabling convenient local replacement.

5. High Yield Rate of RIBON Vacuum Tumblers

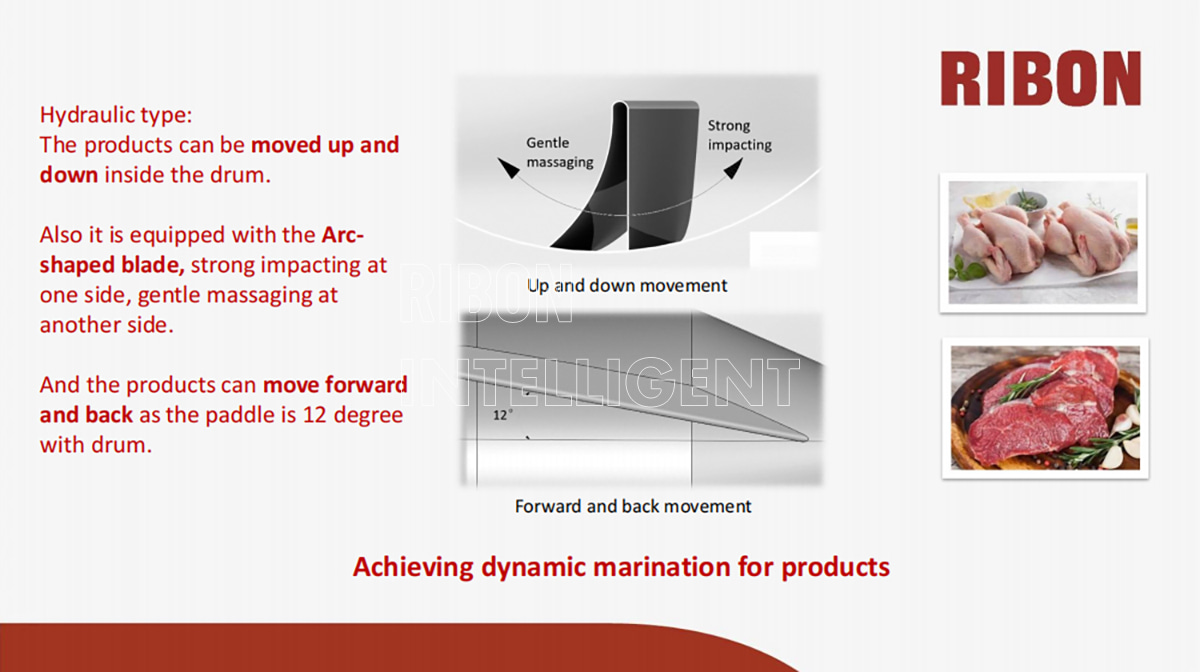

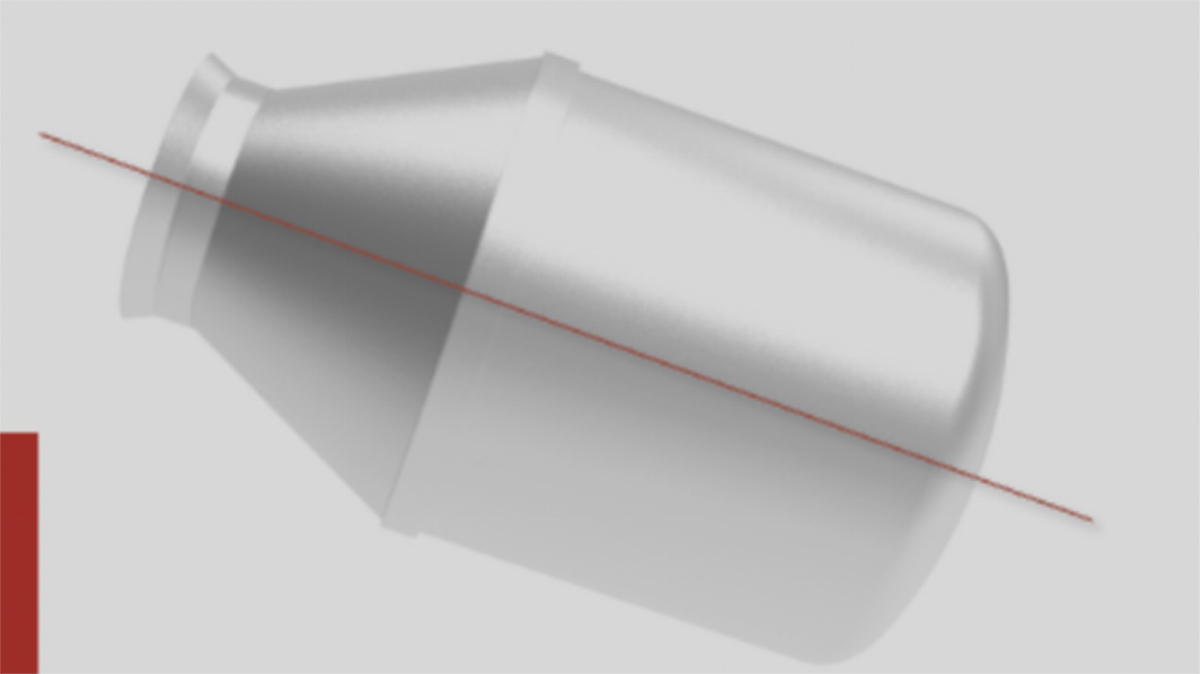

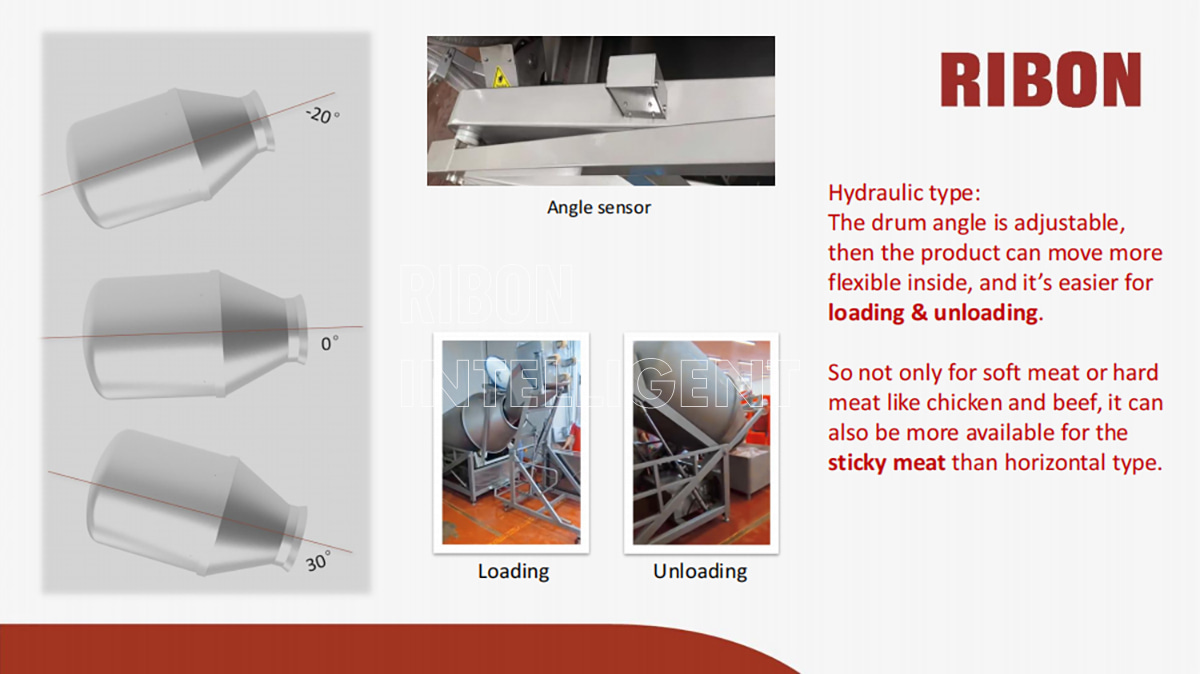

The drum can be adjusted to any tilting angle from 0 to 20 degrees to realize dynamic marination. Inside the drum, the 12-degree inclined arc-shaped carriers, which ensure excellent absorption of marinates.

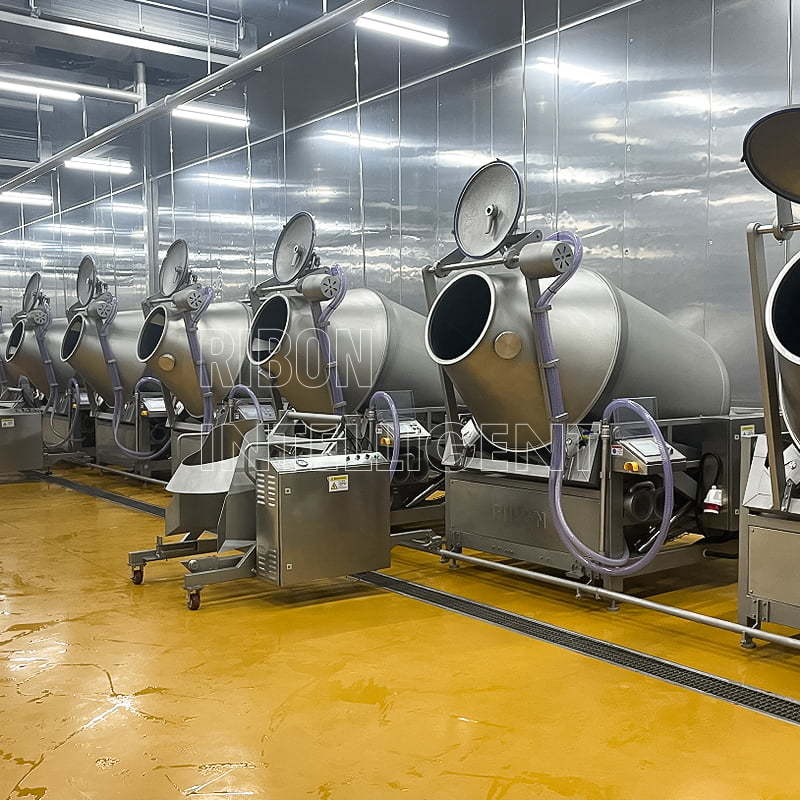

●Loading solution: ◇Movable hydraulic loading device	◇ Rail-type loading device
